Alloyed aluminum material 6005-T5 is adopted for its light and simple structure , so the system can be installed by just fasteners fixed simply without any specific skill.
The base of mounting system can be firmly fixed on the roof safely and strongly.
Technical Parameters

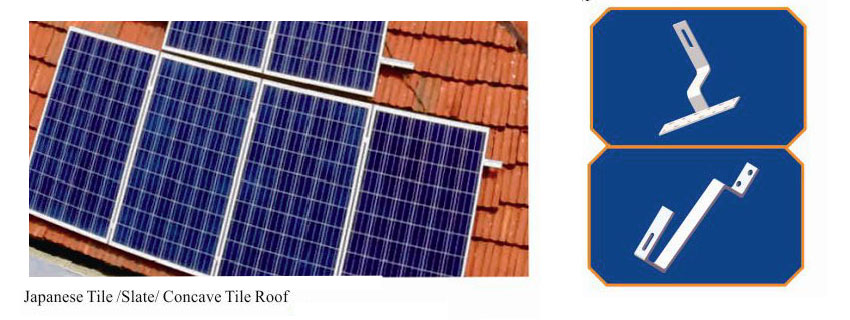

Installation Mode: Japanese Tile/Slate/Concave Tile Roof
Tilt Angle: Parallel with the roof
Module Orientation: Portrait/Landscape
Material: Aluminum AL6005-T5(Anodized)
Fastener: Stainless steel SUS304
Installation Guide
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
