Model : MG4KTL, MG4K6TL, MG5KTL, MG4KTL-2M, MG4K6TL-2M, MG5KTL-2M
Description

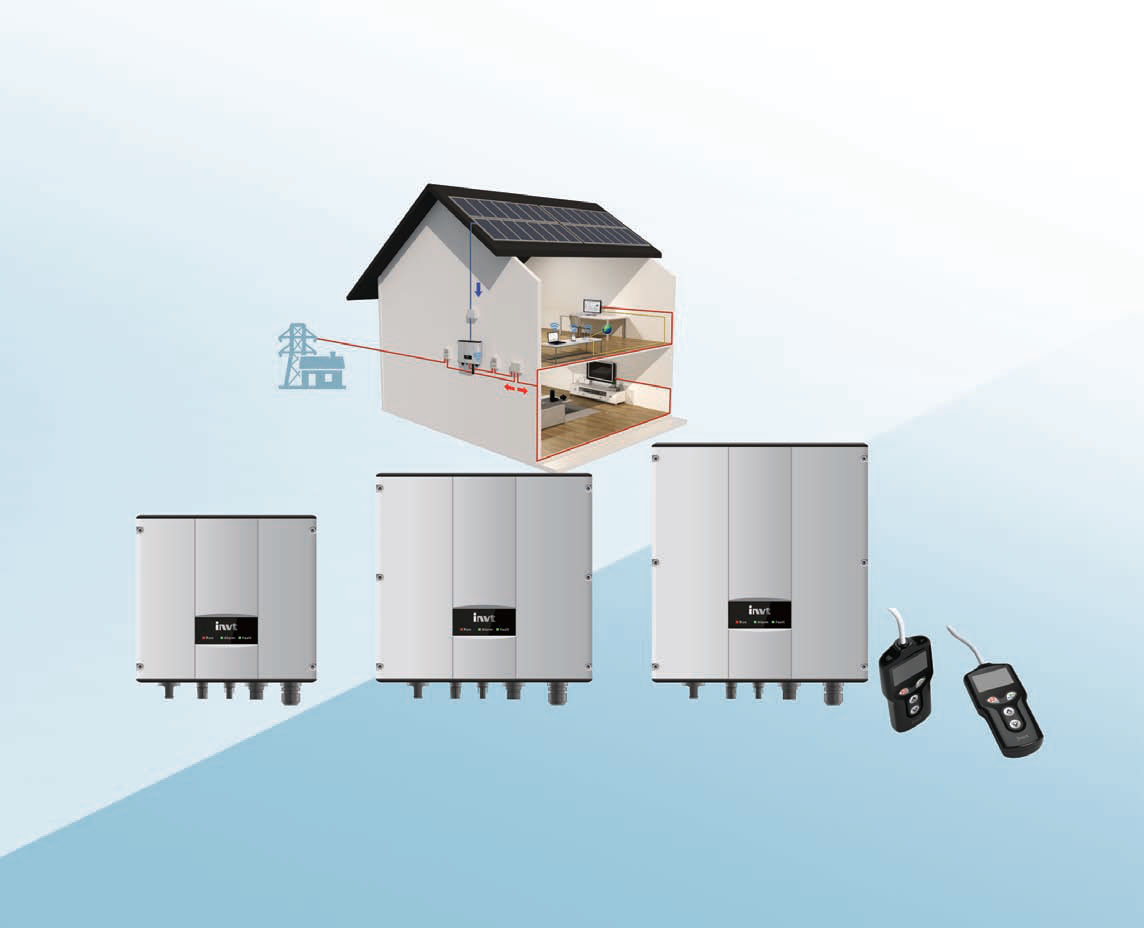

MG series single phase Inverter is anew generation of PV string Inverter which has been developed by INVT for residential users.
MG series Inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.
Feature
- The core technologies are form Germany.
- Software optimization for the power grid with much wider adaptability
- Global Integrated monitoring and management, supporting all kinds of portable mobile devices, HMI is optional.
- Wider voltage range, lower starting voltage, higher conversion efficiency.
- Designed with latest thermal simulation technology for longer service life.
HMI Features
- Small and exquisite appearance.
- LCD display and easy to operate keyboard with multiple functions.
- Plug & Play
| MG4KTL | MG4K6TL | MG5KTL | MG4KTL-2M | MG4K6TL-2M | MG5KTL-2M | |
|---|---|---|---|---|---|---|
| Input (DC) | ||||||
| Rated DC input power (W) | 4000 | 4600 | 5000 | 4000 | 4600 | 5000 |
| Max. DC input power (W) | 4500 | 5000 | 5500 | 4500 | 5000 | 5500 |
| Starting power (W) | 50 | |||||
| Starting voltage /Min.
operation voltage (V) |
120/100 | |||||
| MPPT range (V) | 120-500 | |||||
| Number of MPPT/String per MPPT | 1/2 | 2/1 | ||||
| Max. DC current (A) per
MPPT x Number of MPPT |
18×1 | 18×1 | 20×1 | 10×2 | 11x | 12×2 |
| DC switch | Optional | |||||
| Output (AC) | ||||||
| Rated power (W) | 3680 | 4200 | 4600 | 3680 | 4200 | 4600 |
| Max power (W) | 4000 | 4600 | 5000 | 4000 | 4600 | 5000 |
| Max. AC output current (A) | 19 | 21 | 23 | 19 | 21 | 23 |
| AC voltage range | 230/180~277Vac | |||||
| According to VDE-AR-N4105, G83/2, G59/3, AS4777/3100, CQC | ||||||
| Grid frequency | 50Hz (44~55Hz) / 60Hz (54~65Hz) | |||||
| According to VDE-AR-N4105, G83/2, G59/3, AS4777/3100, CQC | ||||||
| Power factor | ≥0.99 (Adjustable) | |||||
| THD | < 3% (At Rated Power) | |||||
| AC connection | Single-phase (L, N, PE) | |||||
| System | ||||||
| Cooling method | Natural Cooling method | |||||
| Max. efficiency | 97.70% | 97.70% | 97.80% | 97.90% | 98.00% | 98.00% |
| Euro-efficiency | 96.50% | 96.70% | 96.80% | 96.80% | 96.80% | 96.80% |
| MPPT efficiency | 99% | |||||
| Degree of protection | IP65 | |||||
| Self-consumption (at night) | <1W | |||||
| Topology | Transformerless | |||||
| Operating temperature range | -25℃~+60℃, (derate after 45℃) | |||||
| Relative humidity | 0~95%, no condensation | |||||
| Protection | Over voltage protect; DC insulation monitoring; DC over current protection; monitoring; Grounding fault monitoring;
island protection; Overheating protection; Electronic protection; Overvoltage and short circuit protection etc. |
|||||
| Display and communication | ||||||
| Display | LED Display (standard) / LCD (Optional) | |||||
| System language | English, Chinese, German, Dutch | |||||
| Communication interfaces: | RS485 (Standard), WiFi, Ethernet (Optional) | |||||
| Mechanical parameters | ||||||
| Dimension (H x W x D mm) | 405x360x150 | 460x360x150 | ||||
| Weight (kg) | 15 | 17 | ||||
| Installation | Wall mounting | |||||
| Others | ||||||
| DC terminal | BC03A, BC03B ( PV-CF-S2, 5-6 (+) ….; PV-CM-S2, 5-6 (-)…, Helios H4 2.5mm² | |||||
| Certifications | VDE-AR-N4105, G83/2, C10/11, TF3.2.1, AS4777/3100,CQCEN61000-6-1:4,
EN61000-3-2:3, EN61000-11:12, IEC 62109-1:2010, LVRT |
|||||
| Factory warranty (years) | 5 (standard) / 10, 15, 20 (optional) | |||||
