Model : BN1024E, BN1524E, BN2024E, BN3024E
Description

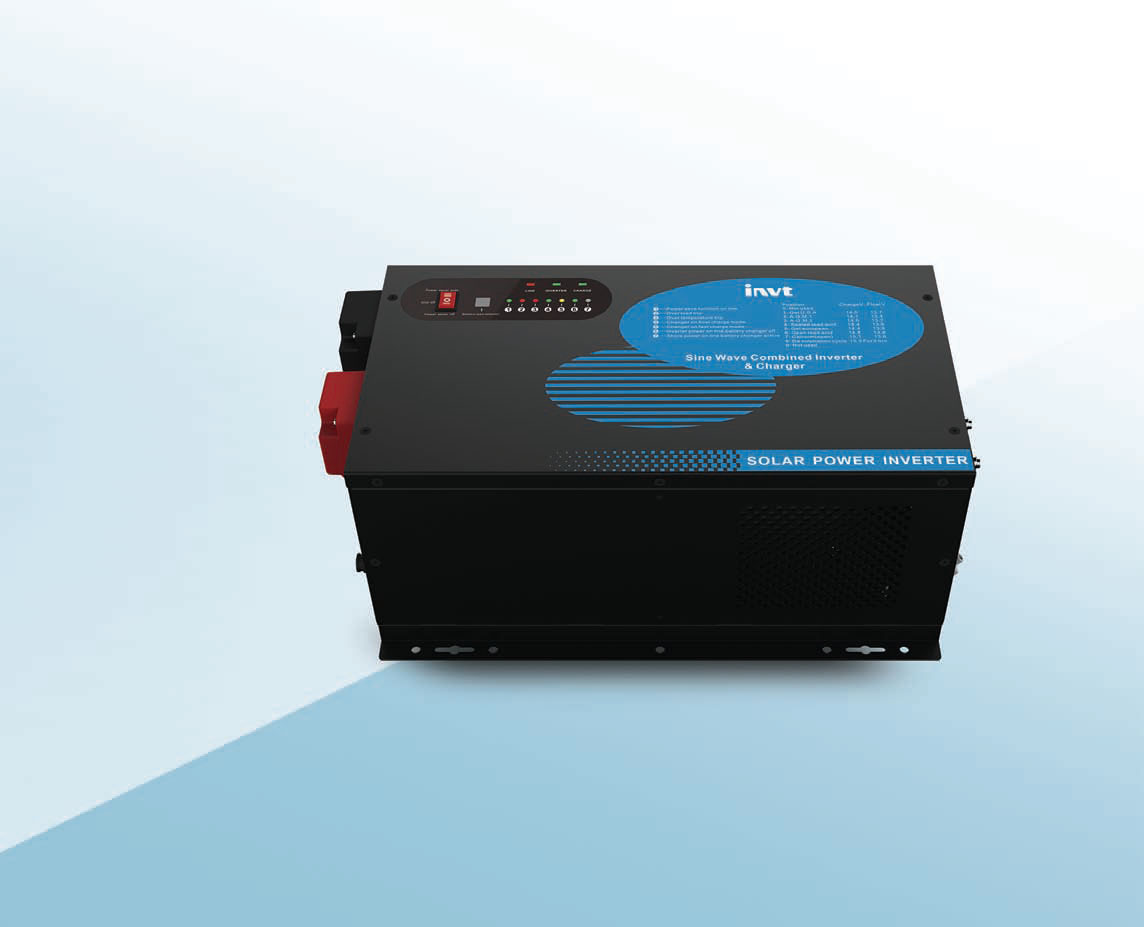

iMars BN series single-phase off-grid inverter adopt the combination technology of integrating traditional isolated UPS function and solar inverter.
to provide the flexible and reliable system solution for residential or industrial uninterruptible power requirements.
Features
• Protection class IP20;
• Isolated internal transformer design to ensure the stability and reliability;
• Capable of providing the continuous power to linear load or non-linear load of lamp, computer, fridge, air-conditioner and the industrial devices;
• MPPT solar charging technology;
• Electricity Quick charging function;
• Multiple charging voltage grades to adapt to more battery Topologys, to maximize battery performance;
• over-load and short-circuit protection;
• multiple working mode are optional for different working priority (Grid / battery/saving mode);
• User-friendly multiple communication module(RS485, RS232, Ethernet, GPRS, WIFI ) are optional to be compatible with more monitoring device : mobile ,computer, internet/remote operation;
• Support 12/24V battery, 120V/230V (50/60Hz) output.
Specification
| 1024E | 1524E | 2024E | 3024E | |
|---|---|---|---|---|
| Line Mode Specifications | ||||
| AC Input Voltage | 220/230 Vac | |||
| AC voltage range | 155Vac~272 Vac ±2% | |||
| Frequency | 50Hz/ 60Hz (Auto detection) | |||
| Frequency Range | 47+0.3Hz ~ 55+0.3Hz for 50Hz; 57+0.3Hz ~ 65+0.3Hz for 60Hz | |||
| Over-Load /Short Protection | Circuit breaker | |||
| Efficiency | >95% | |||
| Transfer Time | 10ms (typical) | |||
| Max Bypass Overload Current | 30A | |||
| Invert Mode | ||||
| Output Voltage Waveform | Sine wave | |||
| Rated Output Power (VA) | 1000 | 1500 | 2000 | 3000 |
| Rated Output Power (W) | 1000 | 1500 | 2000 | 3000 |
| Power factor | 1.0 | |||
| Output Voltage (V) | 230Vac | |||
| Output Voltage Regulation | ±10% | |||
| Output Frequency (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | |||
| Efficiency | >80% | |||
| Over-Load Protection | (110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150% ±10%: Fault (shutdown output) after 20s | |||
| Surge Rating (10s) | 3000VA | 4500VA | 6000VA | 11000VA |
| Capable of starting electric motor | 1 HP | 2HP | ||
| Output Short-Circuit Protection | Current limit (Fault after 10s) | |||
| Bypass Breaker Size | 10A | 30A | ||
| Nominal DC Input Voltage/ Min DC
start voltage |
24V /22V | |||
| DC voltage range | 20.0Vdc~32Vdc , ± 0.6Vdc regulation（Low alarm:21V; Shut-down: 20V; High fault: 32V;High recovery:31V） | |||
| Power saver | Load ≦25W (Enabled on “P/S auto” setting of Remote control) | |||
| AC OUTPUT 2 (LOAD) | ||||
| Charge Current | 20A | 25A | 35A | 50A |
| Charge Current Regulation | ± 5Adc | |||
| Battery initial voltage | 20 –31.4Vdc | |||
| Charger Short Circuit Protection | Circuit breaker | |||
| Breaker Size | 30A | |||
| Over Charge Protection | Bat. V ≥ 31.4Vdc, beeps 0.5s every 1s & fault after 60s | |||
| Charger(solar) | ||||
| MPPT Voltage range | 15-90V | |||
| Max PV open-circuit voltage | 90V | |||
| Rated Charge Current | 50A | |||
| efficiency | 98% | |||
| Overload protection(DC load) | 2.0xInom﹥20s, 1.5xInom temperature controlled | |||
| Battery temperature sensor | BTS-optional remote battery temperature sensor for increased charging precision | |||
| Standby Power Consumption | 5W | |||
| General Specifications | ||||
| Safety Certification/EMC Classification | Classification CE(EN62040-1), EN62040-2, C2 | |||
| Protection class | IP20 | |||
| Operating temperature range | -15°C to 40°C (-25ºC ～60ºC for storage) | |||
| Operation humidity | 5% to 95% | |||
| Audible Noise | 60dB max | |||
| Communication | RS-485/RS-232/Remote control | |||
| Size | 381mm x 217mm x 179mm | 461mm x 217mm x 179mm | ||
