Lithium - ion Battery, Products, แบตเตอรี่

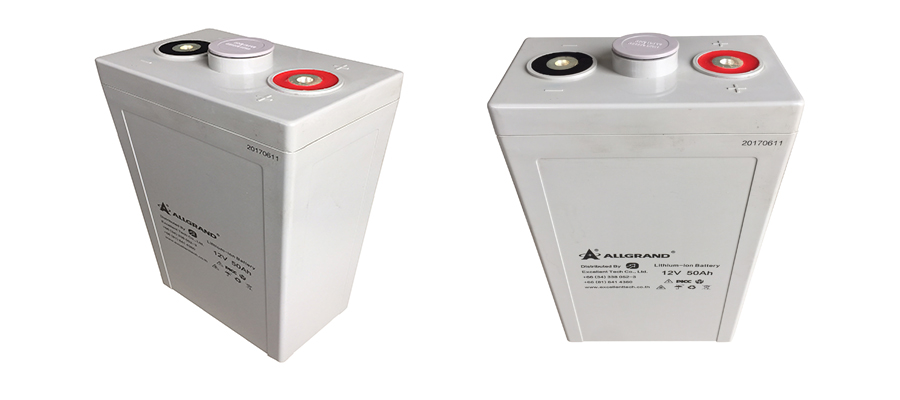

Model: 12V 50AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 50
2 Minimum capacity Ah 50
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 10
7 Max. discharging current A 10
8 Impedance mΩ ≤80mΩ
9 Weight Kg About 3.2
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery

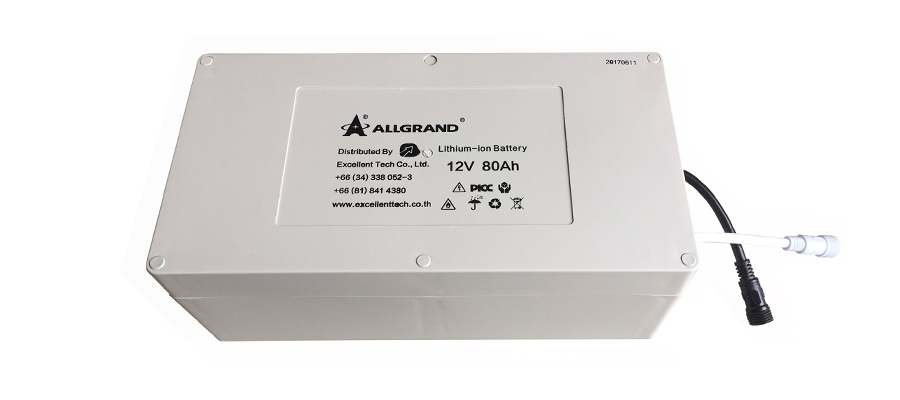

Model: 12V 80AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 80
2 Minimum capacity Ah 80
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 10
7 Max. discharging current A 10
8 Impedance mΩ ≤100mΩ
9 Weight Kg About 5.5
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery

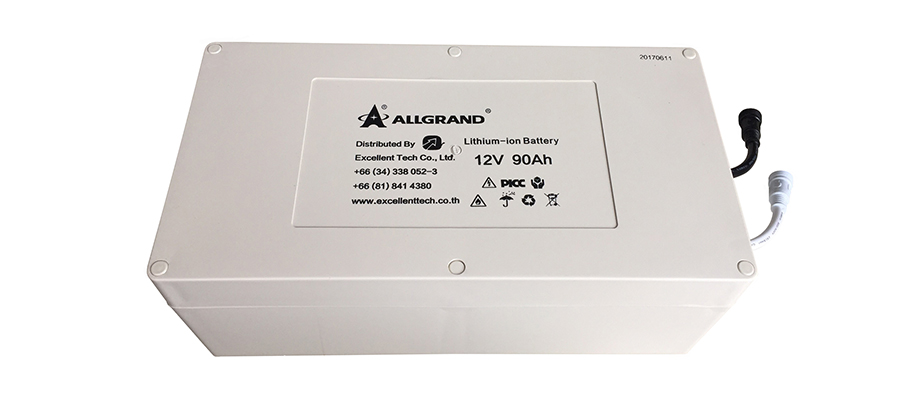

Model: 12V 90AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 90
2 Minimum capacity Ah 90
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 10
7 Max. discharging current A 10
8 Impedance mΩ ≤100mΩ
9 Weight Kg About 6.1
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery

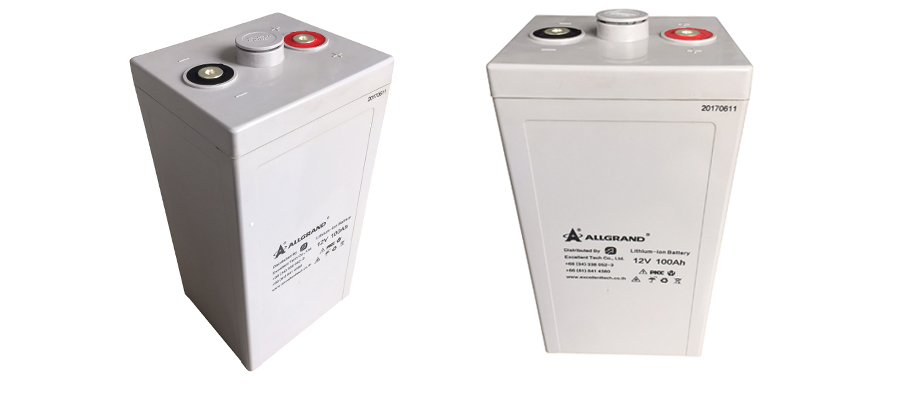

Model: 12V 100AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 100
2 Minimum capacity Ah 100
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 10
7 Max. discharging current A 10
8 Impedance mΩ ≤100mΩ
9 Weight Kg About 6.8
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery

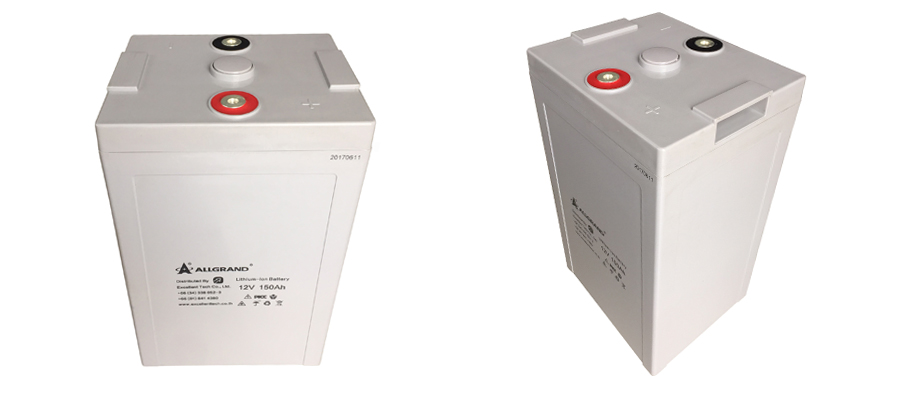

Model: 12V 150AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 150
2 Minimum capacity Ah 150
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 20
7 Max. discharging current A 20
8 Impedance mΩ ≤110mΩ
9 Weight Kg About 10.2
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery

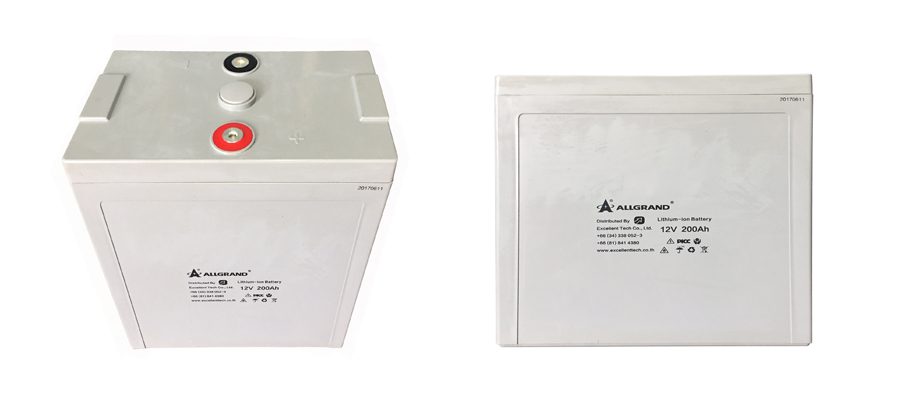

Model: 12V 200AH

NO． Item Unit Specifications Remark
1 Nominal capacity Ah 200
2 Minimum capacity Ah 200
3 Rated voltage V 11.1
4 Charge Ending Voltage V 12.6 Constant current/

Constant voltage
5 Discharge

Ending Voltage

 V 9
6 Max. charging current A 30
7 Max. discharging current A 30
8 Impedance mΩ ≤120mΩ
9 Weight Kg About 13.5
10 Operating temperature ℃ 0～45℃ Charging
℃ -20℃～55℃ Discharging
11 O.C.V V 3.6~3.7 Single battery
